Fly-Through Text

Free!

Requires Highlighter 2 effects installed!

Description

Fly-Through — Effects Preset

For use with Highlighter Effects



Install this effect preset (after installing Highlighter) and add it to any video clip!

Fly-Through uses only two effects from Highlighter: Highlighter and Highlighter – Text.  Highlighter – Text will convert your video clip into a Title-like effect. All you have to do is add it to a video clip, optionally change* the starting Color of Highlighter, change the Text in Highlighter – Text, then, if necessary, make an adjustment to the position of the text as it flies toward the screen.



Making adjustments

Note: Before applying Fly-Through, it is best that you *trim* the clip at about 7-10 seconds. Due to the way FCPX handles these effects presets, the timing seems dependent on the length of the clip — the longer the clip, the slower the animation. Once you apply the effect preset to a 7 second clip, you can stretch it back out again to as long as you need and the animation speed will remain the same. Weird, but awesome.

Change the text

To change the text, you must change it in the Highlighter – Text Inspector. You will not be able to edit the text in the Viewer (it’s designed that way). Whenever you change the text to some other word or phrase, you will most likely need to change the animated change in Center > X as the text flies through. The default text is “Fly-Through”. Select this text and change it to the word or phrase you want. The keyframe in this effect that you will want to alter when you change the text is Center > X. Dial down the parameter’s disclosure triangle to access it (it’s easier this way!) Move the playhead to a position to earlier than the text completely passing through the screen, then click the right arrow on the Center > X keyframe. The text will now be very close to passing through and what you will want to do is adjust the Center > X position so that transparent part of the text is more or less centered in the Viewer. When the text has completed its fly-through, it should completely disappear. If you were not successful, there will be black regions remaining. The best parts to center on are vertical stems although the left or right side of curves will be suitable (depends on the word). You want to pick an area that’s as close to the center of the text as you can manage — that makes for a very nice straight fly-through effect.

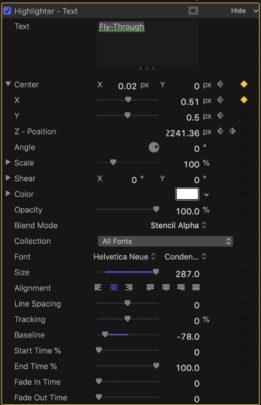

highlighter-text settings for fly-through

Change the color

To change the starting color, or the transition color, move the playhead to the keyframe positions and make the color change. If you make a color change not on a keyframed position, the original color will remain in effect, then change to the newly added color. You are free to make that creative decision, but typically it will not be what you want. In the image to the right, the parameter that you will be dealing with is the Fill Color. The yellow-orange diamond indicates a set keyframe (and the playhead is on the frame in the storyline). Notice the small right arrow indicator. This means there is another keyframe “in the future”. Clicking on the arrow will automatically move the playhead to the next keyframe position. When the playhead is ahead of a keyframe, a left arrow indicator will appear. Use these arrows to navigate to the keyframed color you wish to change. Once you are “on a keyframe”, you may change the color to whatever you want.

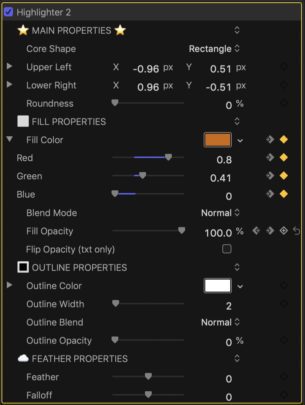

Highlighter parameters for fly-through

Installing Effects Presets

The path to install an Effects Preset is the same for *all* presets:

YourSystemDrive / Users / yourHomeFolder / Library / Application Support / ProApps / Effects Presets / — no categories to mess with 😉

It is recommended that if you wish to use these effects presets, install Highlighter 2 into an Effects category named “FCPXTemplates”. Otherwise, follow the instructions in this guide:

Using Effects Presets in FCPX
Using FCPXTemplates Effects Presets

Enjoy!
